International Standard Compliance
The ELECYLINDER and DC Power Supply for EC Motor Drive (PSA-200) complies with the following overseas standards.
Refer to the Overseas Standard Compliance Manual (ME0287) for more detailed information.
Refer to the Overseas Standard Compliance Manual (ME0287) for more detailed information.
Product | CE Marking | UL Standard | ||
RoHS3 Directive | EMC Directive | RE Directive (Note1) | ||
ELECYLINDER | ◯ | ◯ | ◯ | ◯(Note2, Note3) |
PSA-200 | ◯ | ◯ | － | ◯(Note2) |
If it is necessary to announce EC Declaration of Conformity with this product built in your facility, as this product itself declares the conformity to EU Directives in some specific conditions as stated below, you would be able to utilize this declaration.
EU Directives Applicable for EC Declaration of Conformity
EMC Directive (2014/30/EU) : To be checked in CE marking described in model nameplate.
RoHS3 Directive (2011/65/EU + (EU)2015/863) : Same as above.
RE Directive (2014/53/EU) : To be checked in EC Declaration of Conformity.
EMC Directive (2014/30/EU) : To be checked in CE marking described in model nameplate.
RoHS3 Directive (2011/65/EU + (EU)2015/863) : Same as above.
RE Directive (2014/53/EU) : To be checked in EC Declaration of Conformity.
There is EC Declaration of Conformity attached in Appendix Chapter 1 EU Declaration of Conformity showing conformity to Wireless Directive.
This EC Declaration of Conformity to may be modified without notice according to addition of conformed models, specification change and so on. Consult with our sales person in charge if necessary.
This EC Declaration of Conformity to may be modified without notice according to addition of conformed models, specification change and so on. Consult with our sales person in charge if necessary.
(Note 1) RE Directive applies to ELECYLINDERs with WL (wireless communication specification) or WL2 (Wireless axis operation specification) in model name options.
Certificates and self-declarations regarding the wireless function are handled under the model name below for the wireless circuit board.
MODEL: IABL3826, IABL3827
Certificates and self-declarations regarding the wireless function are handled under the model name below for the wireless circuit board.
MODEL: IABL3826, IABL3827

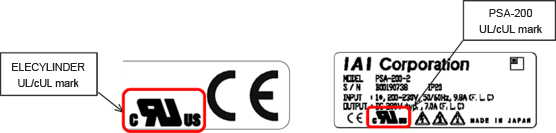

(Note 2) Only those with the UL/cUL mark on a model nameplate should comply with it.
(Products produced on June 2025 and after should have the mark.)
(Products produced on June 2025 and after should have the mark.)
(Note 3) EC-S10(X)/S13(X)/S15(X)/S18(X) and EC-B8SS are not complied.
For details of applicable models, refer to Overseas Standards Compliance Manual (ME0287) .
For details of applicable models, refer to Overseas Standards Compliance Manual (ME0287) .
